Lab 11: Monitor services that are deployed to Azure

Microsoft Azure user interface

Given the dynamic nature of Microsoft cloud tools, you might experience Azure UI changes that occur after the development of this training content. As a result, the lab instructions and lab steps might not align correctly.

Microsoft updates this training course when the community alerts us to needed changes. However, cloud updates occur frequently, so you might encounter UI changes before this training content updates. If this occurs, adapt to the changes, and then work through them in the labs as needed.

Instructions

Before you start

Username: Admin
Password: Pa55w.rd

Note: Your instructor will provide instructions to connect to the virtual lab environment.

Review the installed applications

Find the taskbar on your Windows 10 desktop. The taskbar contains the icons for the applications that you’ll use in this lab, including:

Microsoft Edge
File Explorer
Visual Studio Code
Azure PowerShell

Architecture diagram

Architecture diagram depicting the monitoring of services that are deployed to Azure

Exercise 1: Create and configure Azure resources

Task 1: Open the Azure portal

On the taskbar, select the Microsoft Edge icon.
In the browser window, browse to the Azure portal (portal.azure.com), and then sign in with the account you’ll be using for this lab.

Note: If this is your first time signing in to the Azure portal, you’ll be offered a tour of the portal. Select Get Started to skip the tour and begin using the portal.

Task 2: Create an Application Insights resource

In the Azure portal, use the Search resources, services, and docs text box at the top of the page to search for Application Insights and then, in the list of results, select Application Insights.
On the Application Insights blade, select + Create.

On the Application Insights blade, on the Basics tab, perform the following actions, and select Review + Create:

Setting	Action
Subscription drop-down list	Retain the default value.
Resource group section	Select Create new, enter MonitoredAssets, and then select OK.
Name text box	instrm[yourname].
Region drop-down list	Select any Azure region in which you can deploy an Azure Service Bus.
Resource Mode section	Select the Workspace-based option.
WORKSPACE DETAILS section	Retain the default values for the Subscription and Log Analytics Workspace drop-down lists.

The following screenshot displays the configured settings on the Application Insights blade.

Create an Azure Application Insights instance blade

On the Review + Create tab, review the options that you selected during the previous steps.
Select Create to create the Application Insights instance by using your specified configuration.

Note: Wait for the creation task to complete before you proceed with this lab.
On the Microsoft.AppInsights | Overview blade, select the Go to resource button to navigate to the blade of the newly created Application Insights resource.
On the Application Insights blade, in the Configure section, select the Properties link.
On the Properties blade, next to the Instrumentation Key entry, select the Copy to clipboard button, and then record the copied value. You’ll use it later in this lab.

Note: The key is used by client applications to connect to a specific Application Insights resource.

Task 3: Create an Azure Web API resource

In the Azure portal, use the Search resources, services, and docs text box at the top of the page to search for App Services and then, in the list of results, select App Services.
On the App Services blade, select + Create.

On the Create Web App blade, on the Basics tab, perform the following actions, and then select Next: Deployment:

Setting	Action
Subscription drop-down list	Retain the default value.
Resource group drop-down list	Select MonitoredAssets.
Name text box	Enter smpapi[yourname]
Publish section	Select Code.
Runtime stack drop-down list	Select .NET Core 3.1 (LTS).
Operating System section	Select Windows.
Region drop-down list	Select the same region you chose as the location of the Application Instance resource.
App Service Plan section	Select Create new.
Name text box	Enter MonitoredPlan, and then select OK.
SKU and size section	Retain the default value.

On the Deployment tab, select Next: Networking (preview) and select Next: Monitoring.

On the Monitoring tab, perform the following actions, and then select Review + Create:

Setting	Action
Enable Application Insights section	Ensure that Yes is selected.
Application Insights drop-down list	Select the instrm[yourname] Application Insights resource that you created previously in this lab.

On the Review + Create tab, review the options that you selected during the previous steps.
Select Create to create the web API by using your specified configuration.

Note: Wait for the creation task to complete before you proceed with this lab.
On the deployment Overview blade, select the Go to resource button to navigate to the blade of the newly created Azure web API.
On the App Service blade, in the Settings section, select the Configuration link.
In the Configuration section, perform the following actions:

a. On the Application settings tab, select Show Values to display secrets associated with your web API.

b. Note the value representing the APPINSIGHTS_INSTRUMENTATIONKEY key. This value was set automatically when you built the web API resource.
On the App Service blade, in the Settings section, select the Properties link.
In the Properties section, record the value of the URL link. You’ll use this value later in the lab to submit requests to the web API.

Task 4: Configure web API autoscale options

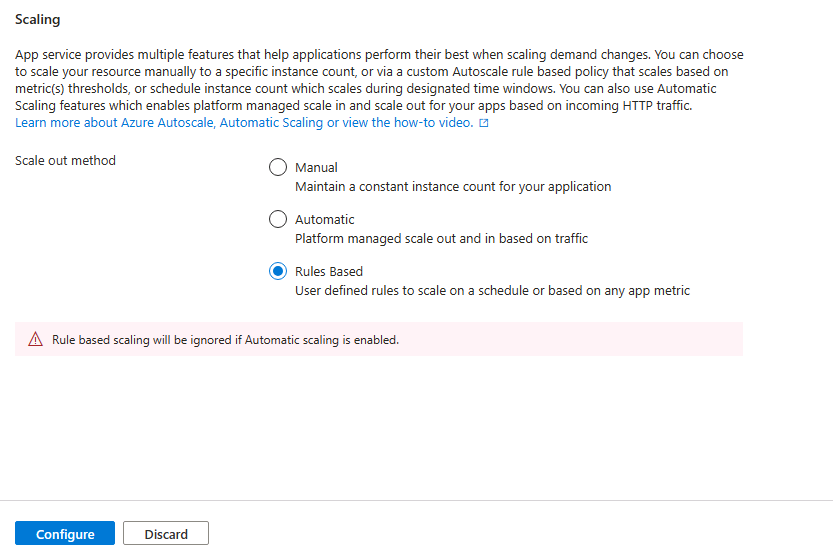

On the App Service blade, in the Settings section, select the Scale out (App Service Plan) link.

In the Scale out section, perform the following actions, and then select Save:

Setting	Action
Scale out section	Select Custom autoscale.
Autoscale setting name text box	Enter ComputeScaler.
Resource group drop-down list	Select MonitoredAssets.
Scale mode section	Select Scale based on a metric.
Minimum text box in the Instance limits section	Enter 2.
Maximum text box in the Instance limits section	Enter 8.
Default text box in the Instance limits section	Enter 3.

The following screenshot displays the configured settings in the Scale out section on the App Service blade.

Default scale condition on the Azure web API blade

Setting	Action
Rules section	Select Add a rule.
Scale rule blade	Retain default values for all settings, and then select Add.

The following screenshot displays additional settings in the Scale out section on the App Service blade.

Scale rule blade of the default scale condition on the Azure web API blade

Note: Wait for the save operation to complete before you continue with this lab.

Review

In this exercise, you created the Azure resources that you’ll use for the remainder of the lab.

Exercise 2: Monitor a local web API by using Application Insights

Task 1: Build a .NET Web API project

From the lab computer, start Visual Studio Code.
In Visual Studio Code, on the File menu, select Open Folder.
In the Open Folder window, browse to Allfiles (F):\Allfiles\Labs\11\Starter\Api, and then select Select Folder.
In the Visual Studio Code window, activate the shortcut menu, and then select Open in Integrated Terminal.
At the terminal prompt, run the following command to create a new .NET Web API application named SimpleApi in the current directory:
```
dotnet new webapi --output . --name SimpleApi
```
Run the following command to import version 2.18.0 of Microsoft.ApplicationInsights from NuGet to the current project:
```
dotnet add package Microsoft.ApplicationInsights --version 2.18.0
```
Note: The dotnet add package command will add the Microsoft.ApplicationInsights package from NuGet. For more information, refer to Microsoft.ApplicationInsights.
Run the following command to import version 2.18.0 of Microsoft.ApplicationInsights.AspNetCore from NuGet:
```
dotnet add package Microsoft.ApplicationInsights.AspNetCore --version 2.18.0
```
Note: The dotnet add package command will add the Microsoft.ApplicationInsights.AspNetCore package from NuGet. For more information, refer to Microsoft.ApplicationInsights.AspNetCore.
At the terminal prompt, run the following command to import version 2.18.0 of Microsoft.ApplicationInsights.PerfCounterCollector from NuGet to the current project:
```
dotnet add package Microsoft.ApplicationInsights.PerfCounterCollector --version 2.18.0
```
Note: The dotnet add package command will add the Microsoft.ApplicationInsights.PerfCounterCollector package from NuGet. For more information, refer to Microsoft.ApplicationInsights.PerfCounterCollector.
At the terminal prompt, run the following command to build the .NET Web API:
```
dotnet build
```

Task 2: Update app code to disable HTTPS and use Application Insights

In the Visual Studio Code window, on the Explorer pane, select the Startup.cs file to open the file on the editor pane.
On the editor pane, in the Startup class, locate and delete the following code in line 39:
```
app.UseHttpsRedirection();
```
Note: This line of code forces the web API to use HTTPS. For this lab, this is unnecessary.
At the beginning of the definition of the Startup class, add a new static string constant named INSTRUMENTATION_KEY with the value set to the Application Insights resource instrumentation key that you recorded previously in this lab:
```
private const string INSTRUMENTATION_KEY = "instrumentation_key";
```
Note: For example, if your instrumentation key is d2bb0eed-1342-4394-9b0c-8a56d21aaa43, that line of code would be private const string INSTRUMENTATION_KEY = "d2bb0eed-1342-4394-9b0c-8a56d21aaa43";

Locate the ConfigureServices method in the Startup class:

public void ConfigureServices(IServiceCollection services)
{
    services.AddControllers();
}

Starting from a new line, add the following code at the end of the ConfigureServices method to configure Application Insights using the provided instrumentation key:
```
services.AddApplicationInsightsTelemetry(INSTRUMENTATION_KEY);
```

Review the ConfigureServices method, which should now contain the following code:

public void ConfigureServices(IServiceCollection services)
{
    services.AddControllers();
    services.AddApplicationInsightsTelemetry(INSTRUMENTATION_KEY);
}

Save the Startup.cs file.
At the terminal prompt, run the following command to build the .NET Web API.
```
dotnet build
```

Task 3: Test an API application locally

At the terminal prompt, run the following command, and then select Enter to create a certificate. Select YES on the prompted option.
```
dotnet dev-certs https --trust
```
At the terminal prompt, run the following command to launch the .NET Web API.
```
dotnet run
```
From the taskbar, open the context menu for the Microsoft Edge icon, and then open a new browser window.

In the browser window that opens, navigate to the page in which the URL contains the /weatherforecast relative path of your web API, which at this point is hosted at localhost on port 5000.

Note: The full URL is http://localhost:5000/weatherforecast.

Note: The page should contain an output in the following format:

[{"date":"2021-09-04T10:15:04.0969996-07:00","temperatureC":54,"temperatureF":129,"summary":"Sweltering"},{"date":"2021-09-05T10:15:04.0972401-07:00","temperatureC":44,"temperatureF":111,"summary":"Balmy"},{"date":"2021-09-06T10:15:04.0976549-07:00","temperatureC":41,"temperatureF":105,"summary":"Scorching"},{"date":"2021-09-07T10:15:04.0976613-07:00","temperatureC":-4,"temperatureF":25,"summary":"Freezing"},{"date":"2021-09-08T10:15:04.0976618-07:00","temperatureC":33,"temperatureF":91,"summary":"Balmy"}]

Close the browser window that’s displaying the page generated by http://localhost:5000/weatherforecast.
In Visual Studio Code, select Kill Terminal (the Recycle Bin icon) to close the terminal pane and any associated processes.

Task 4: Review metrics in Application Insights

On your lab computer, switch to the Microsoft Edge browser window displaying the Azure portal.
In the Azure portal, navigate back to the blade of the instrm[yourname] Application Insights resource you created previously in this lab.
On the Application Insights blade, in the tiles in the center of the blade, find the displayed metrics. Specifically, find the number of server requests that have occurred and the average server response time.

The following screenshot displays the Application Insights metrics of the local web app.

Note: It can take up to five minutes to observe requests in the Application Insights metrics charts.

Review

In this exercise, you created an API app by using ASP.NET and configured it to stream application metrics to Application Insights. You then used the Application Insights dashboard to review performance details about your API.

Exercise 3: Monitor a web API using Application Insights

Task 1: Deploy an application to the web API

On the lab computer, switch to the Visual Studio Code.
In the Visual Studio Code window, in the Explorer pane, navigate to the bin\Debug\netcoreapp3.1 directory.

Note: To verify that you are in the bin\Debug\netcoreapp3.1 directory, in Visual Studio Code, on the File menu, select Open Folder and browse to Allfiles (F):\Allfiles\Labs\11\Starter\Api\bin\Debug\netcoreapp3.1, and then select Select Folder.
Add a file named web.config to the directory.

Open the web.config file and add the following content:

<?xml version="1.0" encoding="utf-8"?>
<configuration>
  <location path="." inheritInChildApplications="false">
    <system.webServer>
      <handlers>
        <add name="aspNetCore" path="*" verb="*" modules="AspNetCoreModuleV2" resourceType="Unspecified" />
      </handlers>
      <aspNetCore processPath="dotnet" arguments=".\SimpleApi.dll" stdoutLogEnabled="false" stdoutLogFile=".\logs\stdout" hostingModel="inprocess" />
    </system.webServer>
  </location>
</configuration>

Save and close the file.
In the Visual Studio Code window, activate the shortcut menu, and then select Open in Integrated Terminal.
At the terminal prompt, run the following command to ensure that the current directory is set to the Allfiles (F):\Allfiles\Labs\11\Starter\Api\bin\Debug\netcoreapp3.1, where the deployment files reside:
```
cd F:\Allfiles\Labs\11\Starter\Api\bin\Debug\netcoreapp3.1
```
Run the following command to create a zip file containing the starter project that you’ll deploy next to the Azure web API:
```
Compress-Archive -Path * -DestinationPath api.zip
```
At the terminal prompt, run the following command to sign in to your Azure subscription by using Azure PowerShell:
```
Connect-AzAccount
```
Follow the instructions displayed at the terminal prompt by switching to the Microsoft Edge browser displaying the Azure portal, opening another tab in the browser window, navigating to https://microsoft.com/devicelogin, when prompted, entering the provided code, and then signing in with the account you’ll be using for this lab.

Note: Wait for the sign-in process to complete.
Close the newly opened browser tab and switch back to the terminal prompt in the Visual Studio Code window.
Run the following command to display the listing of all web apps in the MonitoredAssets resource group:
```
Get-AzWebApp -ResourceGroupName MonitoredAssets
```
Run the following command to display the list of web apps in the MonitoredAssets resource group, which names start with smpapi*:
```
Get-AzWebApp -ResourceGroupName MonitoredAssets | Where-Object {$_.Name -like 'smpapi*'}
```

Run the following commands to display the name of the first of the web apps identified in the previous step and store it in a variable named $webAppName:

Get-AzWebApp -ResourceGroupName MonitoredAssets | Where-Object {$_.Name -like 'smpapi*'} | Select-Object -ExpandProperty Name
$webAppName = (Get-AzWebApp -ResourceGroupName MonitoredAssets | Where-Object {$_.Name -like 'smpapi*'})[0] | Select-Object -ExpandProperty Name

Run the following command to deploy the api.zip file you created previously in this task to the web API whose name you identified in the previous step:

az webapp deployment source config-zip --resource-group MonitoredAssets --src api.zip --name $webAppName

Note: If prompted to authenticate, run az login and follows instructions to complete the sign in process.

Note: Wait for the deployment to complete before you continue with this lab.

Note: Review the output of the command and verify that the provisioningState is set to Succeeded. The output of the command should have the following format:

Getting scm site credentials for zip deployment
Starting zip deployment. This operation can take a while to complete ...
Deployment endpoint responded with status code 202
{
    "active": true,
    "author": "N/A",
    "author_email": "N/A",
    "complete": true,
    "deployer": "ZipDeploy",
    "end_time": "2021-09-03T17:02:18.124062Z",
    "id": "f5fb8ef6a11d4f8387f09dc47628007e",
    "is_readonly": true,
    "is_temp": false,
    "last_success_end_time": "2021-09-03T17:02:18.124062Z",
    "log_url": "https://smpapianu.scm.azurewebsites.net/api/deployments/latest/log",
    "message": "Created via a push deployment",
    "progress": "",
    "provisioningState": "Succeeded",
    "received_time": "2021-09-03T17:02:11.942626Z",
    "site_name": "smpapianu",
    "start_time": "2021-09-03T17:02:12.1613438Z",
    "status": 4,
    "status_text": "",
    "url": "https://smpapianu.scm.azurewebsites.net/api/deployments/latest"
}

On the lab computer, launch another Microsoft Edge browser window.
In the browser window, navigate to the Azure Web API app into which you deployed the API app previously in this task by appending to its URL (that you recorded previously in this lab) the suffix /weatherforecast.

Note: For example, if your URL is https://smpapianu.azurewebsites.net, the new URL would be https://smpapianu.azurewebsites.net/weatherforecast.
Verify that the output resembles the one generated when running the API app locally.

Note: The output will include different values but it should have the same format.

Note: If you are getting an exception, make sure the contents of the web.config file matches the sample shown earlier in this task. If it does not match, make any necessary changes and regenerate the api.zip file and re-deploy.

Task 2: Configure in-depth metric collection for Web Apps

On your lab computer, switch to the Microsoft Edge browser window displaying the Azure portal.
In the Azure portal, navigate back to the blade of the smpapi[yourname] web app resource you created previously in this lab.
On the App Service blade, select Application Insights.

On the Application Insights blade, perform the following actions, select Apply, and then in the confirmation dialog, select Yes:

Setting	Action
Application Insights slider	Ensure it is set to Enable.
Instrument your application section	Select the .NET Core tab.
Collection level section	Select Recommended.
Profiler section	Select On.
Snapshot debugger section	Select Off.
SQL Commands section	Select Off.

The following screenshot displays the Application Insights settings of the Azure Web API.

Application Insights settings of the Azure Web API

Switch to the browser tab you opened in the previous task to display the results of deployment of your API app to the target Azure API app (including the /weatherforecast relative path in the target URL) and refresh the browser page several times.
Review the JSON-formatted output generated by the API.
Record the URL that you used to access the JSON-formatted output.

Note: The URL should be in the format https://smpapianu.azurewebsites.net/weatherforecast if smpapianu was the site name you created earlier.

Task 3: Get updated metrics in Application Insights

Return to the browser window displaying the Azure web app in the Azure portal.
On the Application Insights blade of the web app, select the View Application Insights data link.
On the Application Insights blade, review the collected metrics in the tiles in the center of the blade, including the number of server requests that have occurred and the average server response time.

The following screenshot displays the Application Insights metrics of the Azure web app in the Azure portal.

Note: It can take up to five minutes for updated metrics to appear in the Application Insights metrics charts.

Task 4: View real-time metrics in Application Insights

On the Application Insights blade, in the Investigate section, select Live metrics.
Switch back to the browser window displaying the target API app running in the target Azure web app (which targets the /weatherforecast relative path in the target URL), and then refresh the browser page several times.
Switch to the browser window displaying the Live metrics blade and review its content.

Note: The Incoming Requests section should update within seconds, showing the requests that you made to the web API.

Exercise 4: Application Insights logging with .NET Core

Task 1: Configure logging for a .NET Core API app

Switch to the Visual Studio Code window.
At the terminal prompt, run the following command to set the current directory to the Allfiles (F):\Allfiles\Labs\11\Starter\Api, where the deployment files reside:
```
cd F:\Allfiles\Labs\11\Starter\Api
```
Run the following command to import version 2.18.0 of Microsoft.Extensions.Logging.ApplicationInsights from NuGet to the current project:
```
dotnet add package Microsoft.Extensions.Logging.ApplicationInsights --version 2.18.0
```
Note: The dotnet add package command will add the Microsoft.ApplicationInsights package from NuGet. For more information, refer to Microsoft.Extensions.Logging.ApplicationInsights.
In the Visual Studio Code window, in the Explorer pane, navigate to the Controllers directory, and then open the file WeatherForecastController.cs.

Review the content of the file and note that it includes the using Microsoft.Extensions.Logging directive and a constructor injection for the generic ILogger interface.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Logging;
namespace SimpleApi.Controllers
{
    [ApiController]
    [Route("[controller]")]
    public class WeatherForecastController : ControllerBase
    {
        private static readonly string[] Summaries = new[]
        {
            "Freezing", "Bracing", "Chilly", "Cool", "Mild", "Warm", "Balmy", "Hot", "Sweltering", "Scorching"
        };
        private readonly ILogger<WeatherForecastController> _logger;
        public WeatherForecastController(ILogger<WeatherForecastController> logger)
        {
            _logger = logger;
        }
        [HttpGet]
        public IEnumerable<WeatherForecast> Get()
        {
            var rng = new Random();
            return Enumerable.Range(1, 5).Select(index => new WeatherForecast
            {
                Date = DateTime.Now.AddDays(index),
                TemperatureC = rng.Next(-20, 55),
                Summary = Summaries[rng.Next(Summaries.Length)]
            })
            .ToArray();
        }
    }
}

Note: You’ll leverage this configuration to implement custom logging. Currently, the constructor displays a group of five randomly generated weather forecasts. You’ll modify the controller to display one forecast at a time. For each forecast, you’ll generate an informational, warning, or error log entry indicating the type of weather (mild, severe, and extreme). After these log entries are recorded by Application Insights in the corresponding Log Analytics workspace, each entry will have an automatically assigned severity level of 1, 2, or 3.

Locate the var rng = new Random(); line in the public IEnumerable<WeatherForecast> Get() method in the file WeatherForecastController.cs, and then add the following code starting with the next line:

        int temperatureC = rng.Next(-20, 55);
        var summaryId = rng.Next(Summaries.Length);
        switch (summaryId)
        {
            case 0: case 9:
            _logger.LogError("WeatherForecast: extreme weather");
            break;
            case 1: case 2: case 7: case 8:
            _logger.LogWarning("WeatherForecast: severe weather");
            break;
            default:
            _logger.LogInformation("WeatherForecast: mild weather");
            break;
        }

Modify the return statement so it has the following content:

        return Enumerable.Range(1, 1).Select(index => new WeatherForecast
        {
            Date = DateTime.Now.AddDays(index),
            TemperatureC = temperatureC,
            Summary = Summaries[summaryId]
        })
        .ToArray();

Save and close the file.
At the terminal prompt, run the following command to build the .NET Web API:
```
dotnet build
```

Task 2: Test logging of a .NET Core API app

Run the following command to launch the .NET Web API.
```
dotnet run
```
Note: Keep the web API running and monitor the output of the Visual Studio Code terminal pane as you perform the next steps in this task.
On your lab computer, from the taskbar, open the context menu for the Microsoft Edge icon, and then open a new browser window.

Note: Position the browser window such that it doesn’t block the Visual Studio Code terminal pane.
In the open browser window, navigate to http://localhost:5000/weatherforecast, and then refresh the page several times.

Note: Each time you refresh the page, it should display a different weather forecast in the following format.
```
[{"date":"2021-09-04T14:35:29.0789168-07:00","temperatureC":2,"temperatureF":35,"summary":"Sweltering"}]
```
Note: Each refresh of the page should result in an informational, warning, or error message display at the terminal prompt, in the following format:
```
warn: SimpleApi.Controllers.WeatherForecastController[0]
  WeatherForecast: severe weather
```
Note: Refresh the page several times to ensure that you generated at least one message of each type (info, warn, and fail).
Leave the API app running.

Task 3: Review the Application Insights logging

On your lab computer, switch to the Microsoft Edge browser window displaying the Azure portal.
In the Azure portal, navigate back to the blade of the instrm[yourname] Application Insights resource you created previously in this lab.
On the Application Insights blade, in the Monitoring section, select Logs.
If needed, close the Welcome to Log Analytics pane and Queries pane.
In the New Query pane, type the following query and select Run:
```
traces
| order by timestamp desc
```
Review the results of the query.

Note: The results should include log entries corresponding to the warning and error messages generated by the .NET Core api app, with their respective severity levels (2 and 3).

Note: It can take up to five minutes to observe requests in the Application Insights metrics charts.

The following screenshot displays the log query results on the Application Insights Logs blade.

Note: You could deploy the updated API app to an Azure web app to collect its logs using Application Insights in an equivalent manner.

Note: You can extend the Application Insights logging level to include informational events by modifying the appsettings.Development.json (or appsettings.json) file as illustrated in the following code listing. However, you should keep in mind that this will considerably increase the log volume, which has potential network performance and pricing implications:
```
{
  "Logging": {
    "LogLevel": {
      "Default": "Information",
      "Microsoft": "Warning",
      "Microsoft.Hosting.Lifetime": "Information"
    },
    "ApplicationInsights": {
      "LogLevel": {
        "Microsoft": "Information"
      }
    }
  }
}
```
Close the browser window displaying the output of your API app.
Switch to the Visual Studio Code window, and then select Kill Terminal (the Recycle Bin icon) to close the terminal pane and any associated processes.

Review

In this exercise, you configured and tested Application Insights logging of your web API app.

Exercise 5: Clean up your subscription

Task 1: Open Azure Cloud Shell

In the Azure portal, select the Cloud Shell icon to open a new PowerShell session. If Cloud Shell defaults to a PowerShell session, select PowerShell, and in the drop-down menu, select Bash.

Note: If this is the first time you’re starting Cloud Shell, when prompted to select either Bash or PowerShell, select Bash. When you’re presented with the You have no storage mounted message, select the subscription you’re using in this lab, and select Create storage.

Task 2: Delete resource groups

On the Cloud Shell pane, run the following command to delete the MonitoredAssets resource group:
```
az group delete --name MonitoredAssets --no-wait --yes
```
Note: The command executes asynchronously (as determined by the –no-wait parameter), so while you’ll be able to run another Azure CLI command immediately afterwards within the same Bash session, it’ll take a few minutes before the resource groups are actually removed.
Close the Cloud Shell pane in the portal.

Task 3: Close the active applications

Close the currently running Microsoft Edge application.
Close the currently running Visual Studio Code application.

Review

In this exercise, you cleaned up your subscription by removing the resource groups used in this lab.

Lab 11: Monitor services that are deployed to Azure

Microsoft Azure user interface

Instructions

Before you start

Sign in to the lab environment

Review the installed applications

Architecture diagram

Exercise 1: Create and configure Azure resources

Task 1: Open the Azure portal

Task 2: Create an Application Insights resource

Task 3: Create an Azure Web API resource

Task 4: Configure web API autoscale options

Review

Exercise 2: Monitor a local web API by using Application Insights

Task 1: Build a .NET Web API project

Task 2: Update app code to disable HTTPS and use Application Insights

Task 3: Test an API application locally

Task 4: Review metrics in Application Insights

Review

Exercise 3: Monitor a web API using Application Insights

Task 1: Deploy an application to the web API

Task 2: Configure in-depth metric collection for Web Apps

Task 3: Get updated metrics in Application Insights

Task 4: View real-time metrics in Application Insights

Exercise 4: Application Insights logging with .NET Core

Task 1: Configure logging for a .NET Core API app

Task 2: Test logging of a .NET Core API app

Task 3: Review the Application Insights logging

Review

Exercise 5: Clean up your subscription

Task 1: Open Azure Cloud Shell

Task 2: Delete resource groups

Task 3: Close the active applications

Review
