01 - Create a virtual machine in the portal (10 min)

In this walkthrough, we will create a virtual machine in the Azure portal, connect to the virtual machine, install the web server role and test.

Note: Take time during this walk-through to click and read the Informational icons.

Task 1: Create the virtual machine

  1. Sign-in to the Azure portal: https://portal.azure.com

  2. From the All services blade in the Portal Menu, search for and select Virtual machines, and then click +Create and choose +Azure Virtual machine from the drop down.

  3. On the Basics tab, fill in the following information (leave the defaults for everything else):

    Settings Values
    Subscription Use default supplied
    Resource group Create new resource group
    Virtual machine name myVM
    Region (US) East US
    Availability options No infrastructure redundancy options required
    Image Windows Server 2019 Datacenter - Gen2
    Size Standard D2s v3
    Administrator account username azureuser
    Administrator account password (type in carefully!) Pa$$w0rd1234
    Inbound port rules - **Allow select ports **
    Select inbound ports RDP (3389) and HTTP (80)

  4. Switch to the Networking tab to ensure HTTP (80) and RDP (3389) are selected in section Select inbound ports.

  5. Switch to the Management tab, and in its Monitoring section, select the following setting:

    Settings Values
    Boot diagnostics Disable

  6. Leave the remaining values on the defaults and then click the Review + create button at the bottom of the page.

  7. Once Validation is passed click the Create button. It can take anywhere from five to seven minutes to deploy the virtual machine.

  8. You will receive updates on the deployment page and via the Notifications area (the bell icon in the top menu bar).

Task 2: Connect to the virtual machine

In this task, we will connect to our new virtual machine using RDP (Remote Desktop Protocol).

  1. Click on bell icon from the upper blue toolbar, and select ‘Go to resource’ when your deployment has succeded.

    Note: You could also use the Go to resource link on the deployment page

  2. On the virtual machine Overview blade, click Connect button and choose RDP from the drop down.

    Screenshot of the virtual machine properties with the Connect button highlighted.

    Note: The following directions tell you how to connect to your VM from a Windows computer. On a Mac, you need an RDP client such as this Remote Desktop Client from the Mac App Store and on a Linux computer you can use an open source RDP client.

  3. On the Connect to virtual machine page, keep the default options to connect with the public IP address over port 3389 and click Download RDP File. A file will download on the bottom left of your screen.

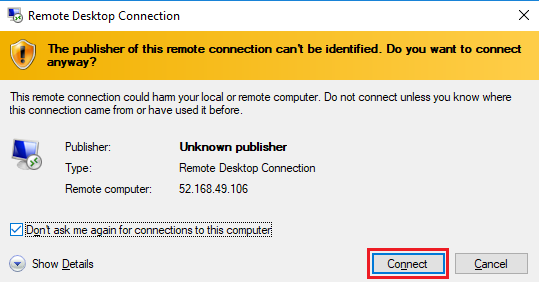

  4. Open the downloaded RDP file (located on the bottom left of your lab machine) and click Connect when prompted.

    Screenshot of the virtual machine properties with the Connect button highlighted.

  5. In the Windows Security window, sign in using the Admin Credentials you used when creating your VM azureuser and the password Pa$$w0rd1234.

  6. You may receive a warning certificate during the sign-in process. Click Yes or to create the connection and connect to your deployed VM. You should connect successfully.

    Screenshot of the Certificate warning dialogue informing the user of an untrusted certificate, with the Yes button highlighted.

A new Virtual Machine (myVM) will launch inside your Lab. Close the Server Manager and dashboard windows that pop up (click “x” at top right). You should see the blue background of your virtual machine. Congratulations! You have deployed and connected to a Virtual Machine running Windows Server.

Task 3: Install the web server role and test

In this task, install the Web Server role on the server on the Virtual Machine you just created and ensure the default IIS welcome page will be displayed.

  1. In the newly opened virtual machine, launch PowerShell by searching PowerShell in the search bar, when found right click Windows PowerShell to Run as administrator.

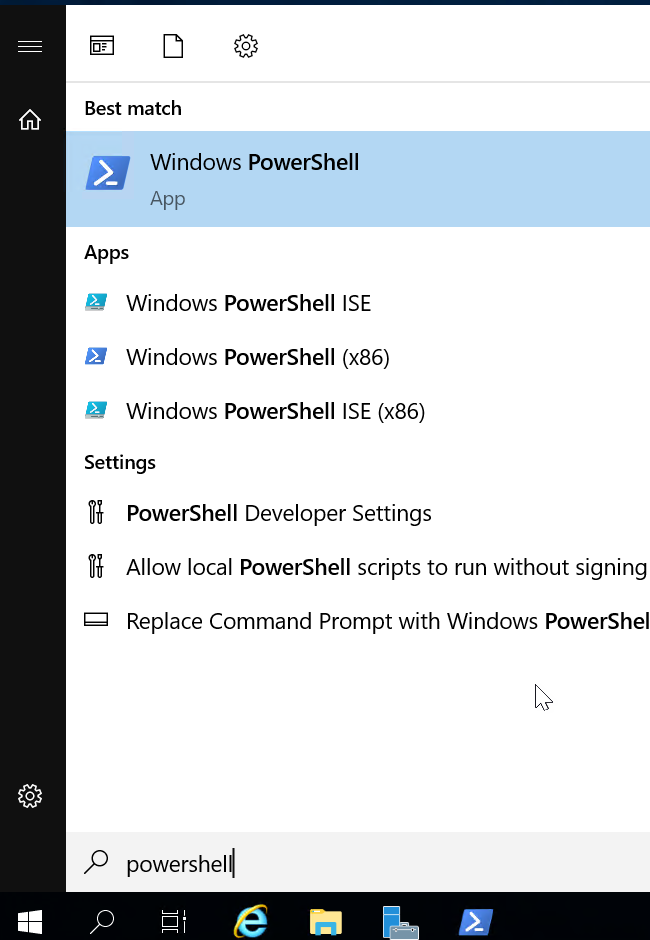

    Screenshot of the virtual machine desktop with the start button clicked and PowerShell selected with run as an administrator highlighted.

  2. In PowerShell, install the Web-Server feature on the virtual machine by running the following command. (Paste in the command and hit ENTER for the installment to begin).

     Install-WindowsFeature -name Web-Server -IncludeManagementTools

  3. When completed, a prompt will state Success with a value True. You do not need to restart the virtual machine to complete the installation. Close the RDP connection to the VM by clicking the x on the blue bar at the top center of your virtual machine. You can also minimize it by clicking the - on the blue bar at the top center.

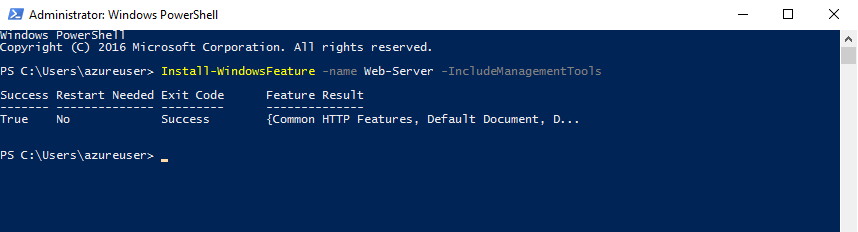

    Screenshot of the windows PowerShell command prompt with the command Install-WindowsFeature -name Web-Server -IncludeManagementTools successfully completed and output stating it was successful.

  4. Back in the portal, navigate back to the Overview blade of myVM and, use the Click to clipboard button to copy the public IP address of myVM, then open a new browser tab, paste the public IP address into the URL text box, and press the Enter key to browse to it.

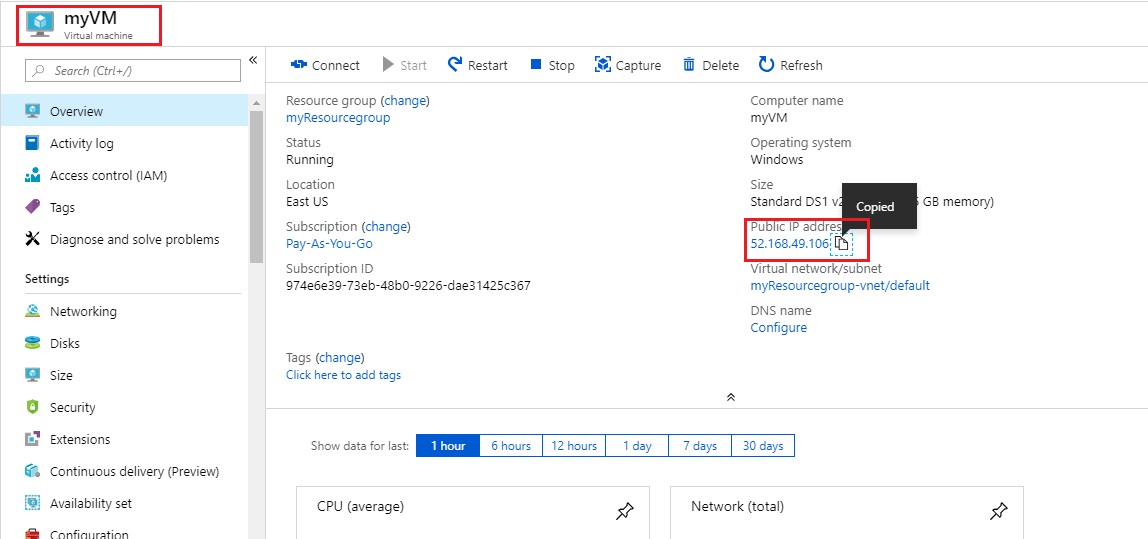

    Screenshot of the Azure portal virtual machine property pane with the IP address copied.

  5. The default IIS Web Server welcome page will be displayed.

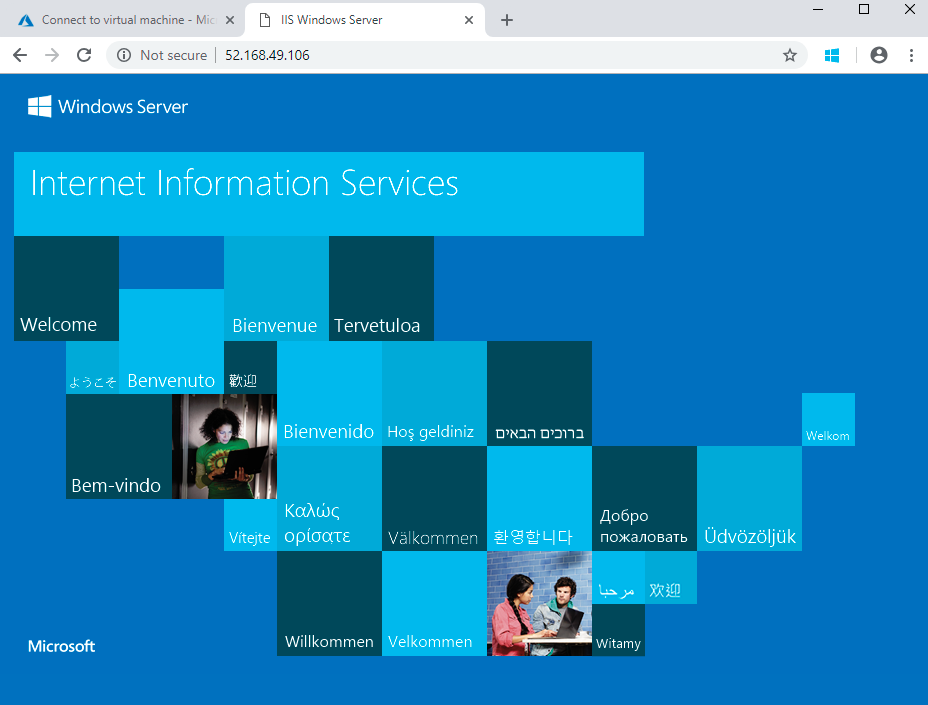

    Screenshot of the default IIS web server welcome page being accessed via the public ip address in a web browser.

Congratulations! You have created a new VM running a web server that is accessible via its public IP address. If you had a web application to host, you could deploy application files to the virtual machine and host them for public access on the deployed virtual machine.

Note: To avoid additional costs, you can optionally remove this resource group. Search for resource groups, click your resource group, and then click Delete resource group. Verify the name of the resource group and then click Delete. Monitor the Notifications to see verify that the deletion completed successfully.
